| ชื่อแบรนด์: | TIANFON |
| Model Number: | Ground Screw Piles |
| MOQ: | 5 set |
| ราคา: | USD800-2000/set |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| ความสามารถในการจัดหา: | 30MW/month |

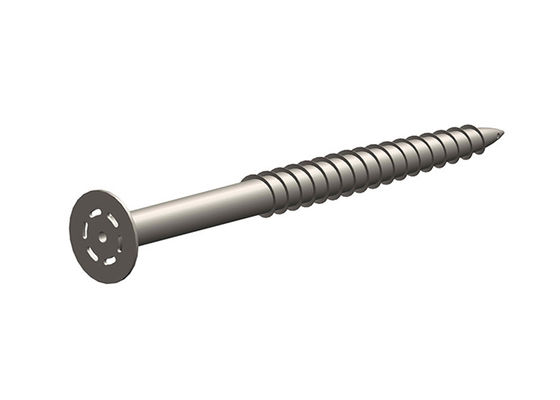

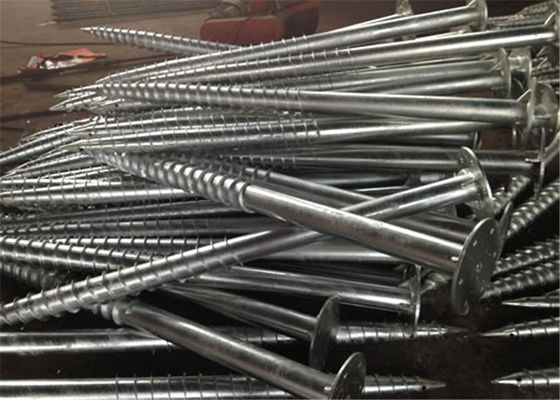

Steel Anchor Helical Ground Screw Piles Metal Foundation Anchor
Screw Foundation Systems is the intelligent alternative fixing method for all types of installations requiring a solid footing. Tests conducted in different consistency soil showed a clear advantage in all aspects, from wind loads and lateral pull, to horizontal load and lift, compared to concrete footings which are held in the ground mostly by their own weight.
Features:
• Install site: All types of Soil
• Pipe Material: Steel Q235B
• Pipe Diameters: 76 mm~200 mm
• Pipe Length: 500~2500 mm
• Pipe Thickness: 3~3.5mm
• Anticorrosive:High class hot dip galvanized
• Warranty: 10 years warranty
• Duration:More than 20 years
|

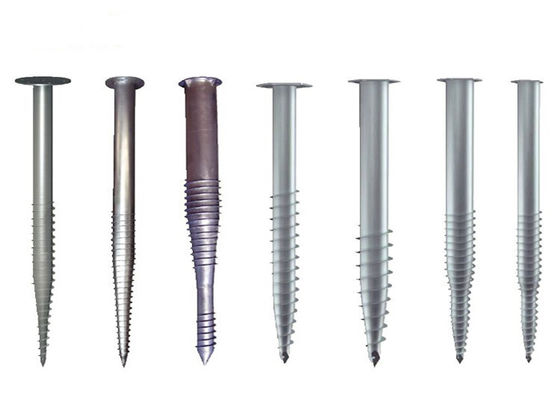

Name |
Size(mm) |
Thickness(mm) |
Material |
Surface treatment |
Photo |
|
Piles with flange |
φ 76/89,1000-2000mm(Length) |
4 |
Q235B |
Hot-Dip Galvanizing |
|
|
Piles without flange |
φ 76/89,1000-2000mm(Length) |
4 |
Q235B |
Hot-Dip Galvanizing |
|
|
Steel pipe piles |
φ 76/89,1000-2000mm(Length) |
4 |
Q236B |
Hot-Dip Galvanizing |
|
Products can be customized according to customer requirement.
